Kaydon 816BC型是一款簡單且不復雜的可變面積(翻板式)流量指示器，帶有一體式機械開關。816BC 流量開關使用彈簧和翻板組件進行操作，當更多流量進入流量開關時，該組件會擺動打開。816BC 流量開關可安裝在任何流向位置，無需直管進出流量開關。來自彈簧/襟翼組件的軸組件連接固定在紅色“流量指示器”指針上，以根據無數指示器刻度提供估計的流量指示。此外，軸組件還固定在凸輪上以啟動低流量狀態開關。

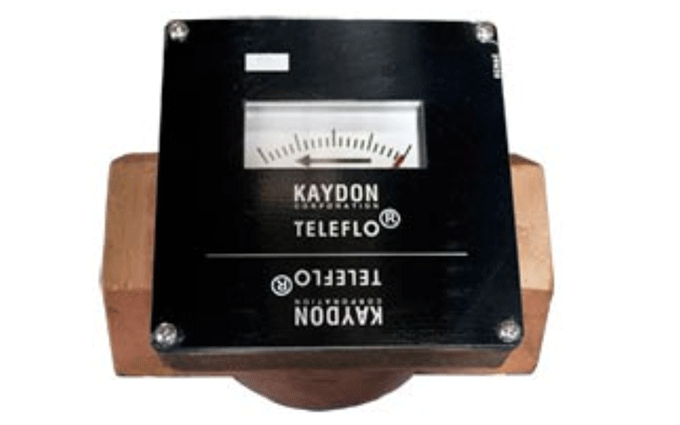

The Kaydon Model 816BC is a simple and uncomplicated variable area (flap type) flow indicator with an integral mechanical switch. The 816BC flow switch operates with a spring and flap assembly that swings open as more flow enters the flow switch. The 816BC flow switches can be installed in any flow direction position, and straight pipe runs entering or exiting the flow switch is not required. The shaft assembly connection from the spring/flap assembly is affixed to a red “flow indicator” pointer to provide estimated flow indication against a numberless indicator scale. Also, the shaft assembly is additionally fastened to a cam to activate a low flow condition switch.

816BC流量開關專為廣泛的油和水流量應用而設計。這些應用包括：

軸承循環潤滑油

齒輪箱循環潤滑油

冷卻水管路

密封水線

機床冷卻液生產線

規格：型號 816BC – 1"

尺寸(英寸)：3.8 長 x 3.5 寬 x 3.4 高

入口連接：1 英寸 NPT

插座連接：1 英寸 NPT

結構材料(主體)：青銅

結構材料(密封件)：軸 O 型圈密封 – Viton?

頭墊圈 – Klingersil C-4401
