RDP位移傳感器DCTH200AG用于位移/位置測量。它們對電樞(滑動部分)相對于位移傳感器本體的運動進行精確的位置測量。

RDP位移傳感器DCTH200AG采用線性可變差動變壓器(LVDT)原理，這意味著它可能是最堅固，最可靠的位置傳感器類型。LVDT傳感器原理的優勢在于，換能器位置傳感元件之間沒有電接觸，這對于傳感器的用戶而言意味著干凈的數據，無限的分辨率和非常長的使用壽命。

RDP位移傳感器DC to DC LVDT傳感器具有LVDT傳感器原理的所有優點，并具有內置LVDT電子器件的額外便利性，可實現直流電源和直流輸出。

英國RDP位移傳感器DCTH200AG ±5mm 1um位移傳感器既有非引導型，系留型也有彈簧復位型。

These transducers are for displacement/position measurement. They make an accurate position measurement of the movement of the armature (the sliding part) relative to the body of the displacement transducer.

This transducer uses the Linear Variable Differential Transformer (LVDT) principle which means that it is probably the most robust and reliable position sensor type available. The strength of the LVDT sensor's principle is that there is no electrical contact across the transducer position sensing element which for the user of the sensor means clean data, infinite resolution and a very long life.

Our DC to DC LVDT transducer has all of the benefits of the LVDT sensor principle with the added convenience of built-in LVDT electronics enabling a dc supply and dc output.

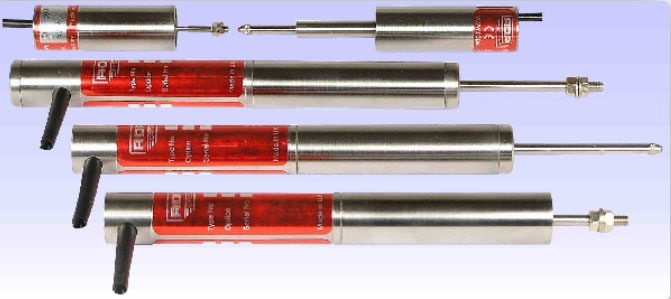

This series of displacement transducer is available as either an unguided, captive or spring return version.
